Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Name: Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve
Brand: Kaienli
Price: 5 USD

Brand Name : Kaienli

Model Number : KSV12-34-0-N

Certification : Available

Place of Origin : China

MOQ : 1 pieces

Price : USD 5- 40 per piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2 or 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : KSV12-34-0-N solenoid flow control valve, solenoid hydraulic valve with 3 way three position

Cavity hole : VC12-3

Pressure resistance : 350 bar (5075 psi)

Rated flow : 22.70 L per min

working principle : 3 way 2 position solenoid valve

Media : Fluid oil type media

Valve Type : solenoid valve on/ off type hydraulic system using

Valve Voltage : 12v / 24V

Connector : ER or DG

solenoid coil : DIN43650 or DT04-2P or DL

valve block : material : QT500-7 or 6061-T6

working pressure : 207 bar, maximum pressure resistance of port 1: 210bar

Contact Now

Product Pictures:

KSV12-34-0-N solenoid flow control valve, solenoid hydraulic valve with 3 way three position

Characteristics:
Working pressure: 350 bar, maximum pressure resistance of port 1: 210bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 60L/Min,
Leakage volume: When the working pressure is 210bar, the leakage volume is within 400ml/Min.
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil Power: 2.5 A at 12 VDC, 1.25 A at 24 VDC. Power:30W
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC12-3;

Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Product technical data:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

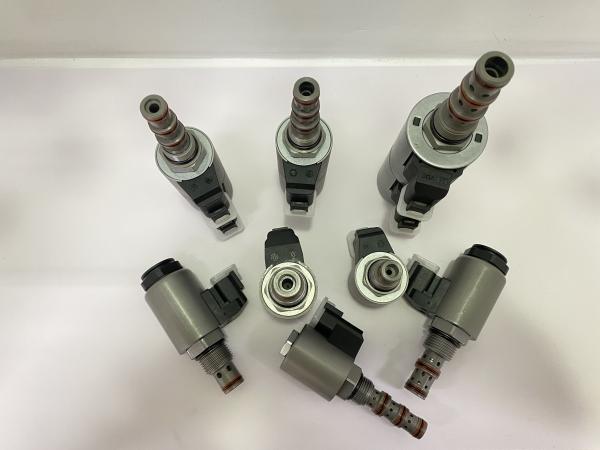

Product real pictures :

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Company Exhibitions:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Our Certificate:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Product processing procedures:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Our new factory and workshop :

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Our warehouse:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Shipment:

Hydraulic Cartridge Solenoid Valve Solenoid Flow Control Valve

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
