hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Name: hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V
Brand: Kaienli
Price: 5 USD

Brand Name : Kaienli

Model Number : KSV10-25-0-N

Certification : Available

Place of Origin : China

MOQ : 1 pieces

Price : USD 5- 40 per piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2 or 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : KSV08-30L-0-N hydraulic solenoid valve three way two position ER DT04-2P 12V or 24V

Cavity hole : VC08-3

Pressure resistance : 350 bar (5075 psi)

Rated flow : 20 liter per min

working principle : 3 way 2 position valve

Media : fluid oil media using

Valve Type : on and off solenoid control valve

Valve Voltage : 12V / 13V/ 24V/27V ,optional choice

Connector : ER or DG optional choice

Coil : DIN43650 connector type + DT04-2P coil

working pressure : 315 bar, 1 port pressure: 250Bar

valve body : standard valve body

Contact Now

Product Pictures:

KSV08-30L-0-N hydraulic solenoid valve three way two position ER DT04-2P 12V or 24V

Characteristics:
1: Working pressure: 315 bar, maximum pressure resistance of 1 port: 210 bar
2: Pressure resistance: 350 bar (5075 psi)
3: Rated flow rate: 20 L/Min,
4: Leakage rate: When the working pressure is 210bar, the leakage rate is within 82ml/Min
5:Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
6: Coil power: 20W, voltage 12V, output current 1.6A, voltage 24V, output current 0.8A
7: Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
8: Valve hole: VC08-3

Working principle:
When the power is off, KSV08-31L-0-N allows oil to flow from ② to ① and stops at ③. After energization, the valve core moves, thereby connecting the flow from ① to ③ and cutting off the flow at ②. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Product technical data:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

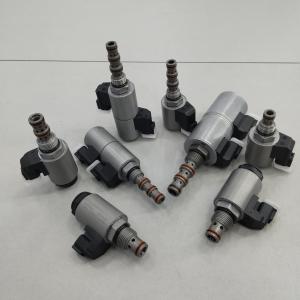

Product real pictures :

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Company Exhibitions:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Our Certificate:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Product processing procedures:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Our new factory and workshop :

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Our warehouse:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Shipment:

hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block
